NEW 1993 NSPU-3 1PN51 KAZUAR soviet russian night vision scope FULL SET IN BOX [RESERVE]

Price $3800 (item number: #927)

Price do not include shipping, shipping costs are calculated separately after placing an order, depending on the location and weight of the items.

Price: $3800
Buy NOW and get a gift from our shop! All items are limited, don't wait.

NEW original russian NSPU-3 1PN58 KAZUAR night vision scope. Made in 1993.

Such scopes were used by fighters of the soviet army, KGB, GRU of the Russia from the end of 1980 to 2015 in all wars and local conflicts for a given period (Afghanistan, Chechnya).
New, from warehouse storage. Never been installed on rifle, never used.

Complete kit! COLLECTION CONDITION! Will work from box.
Matched one same similar number at scope, box and documents.

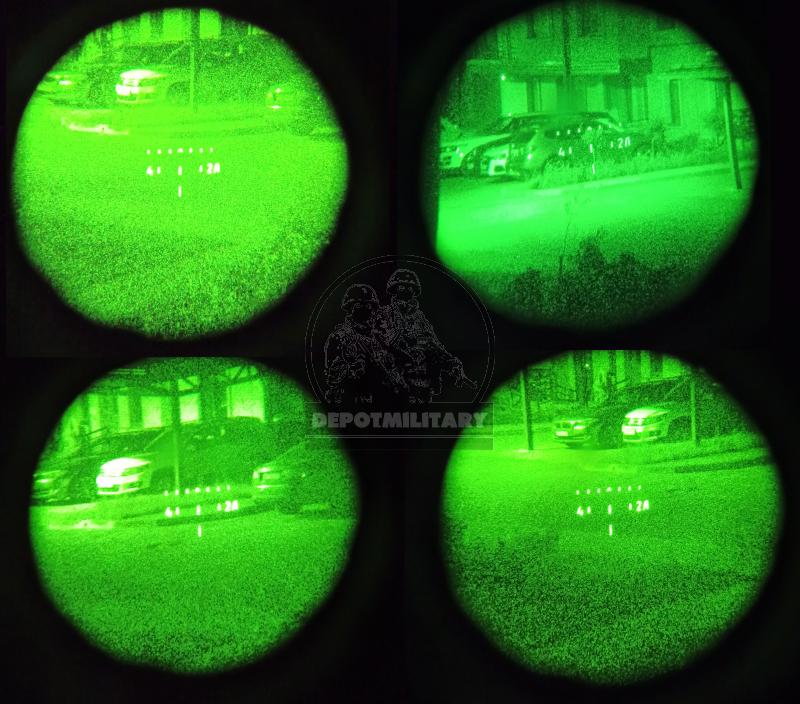

Night images was made actually from this scope, you can see clean image and unbroken reticle with all symbols and scales.

Checked working condition, attached night image was made actually from this scope (with and without aperture).
Also, as a gift, we give an adapter for 4 AAA batteries for working the scope in a civilian version from regular AAA batteries.

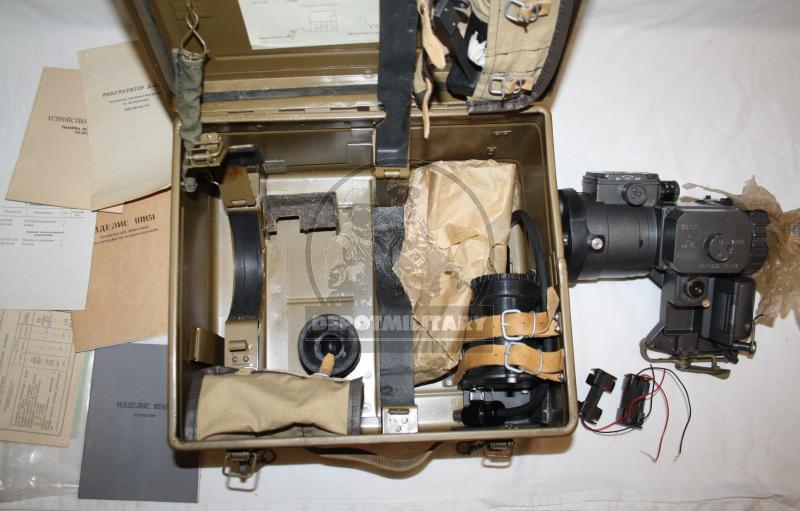

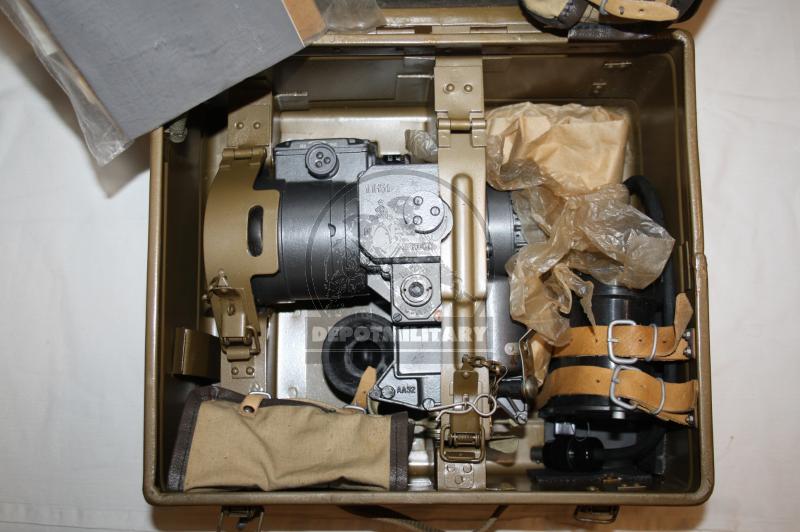

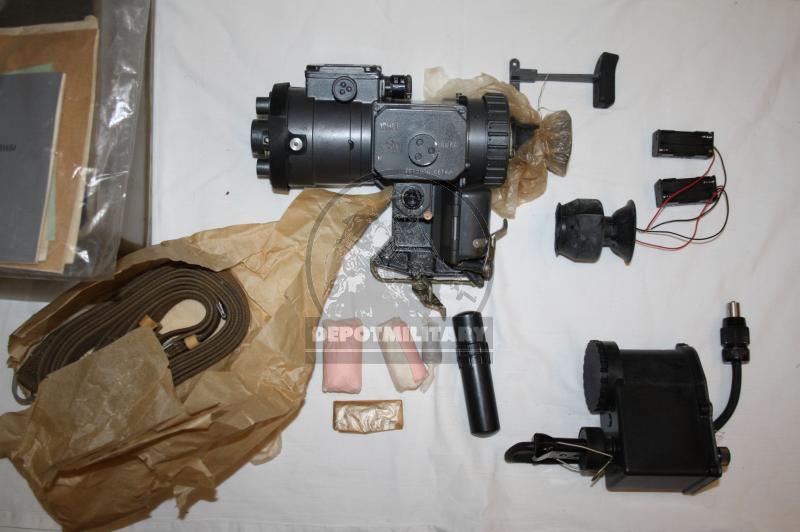

FULL FACTORY SET (at photo):

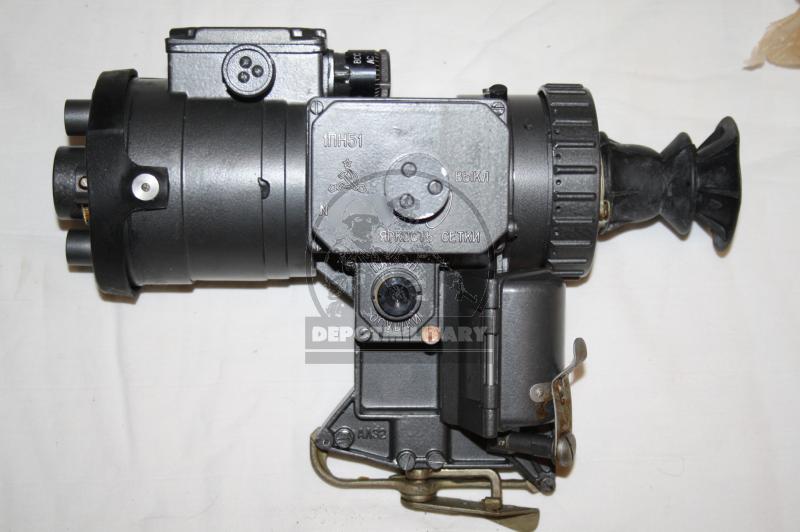

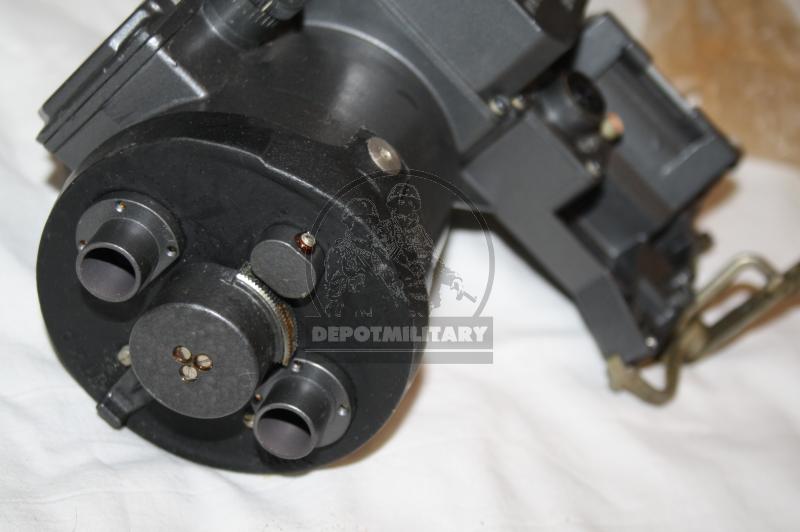

1. Night scope 1pn51

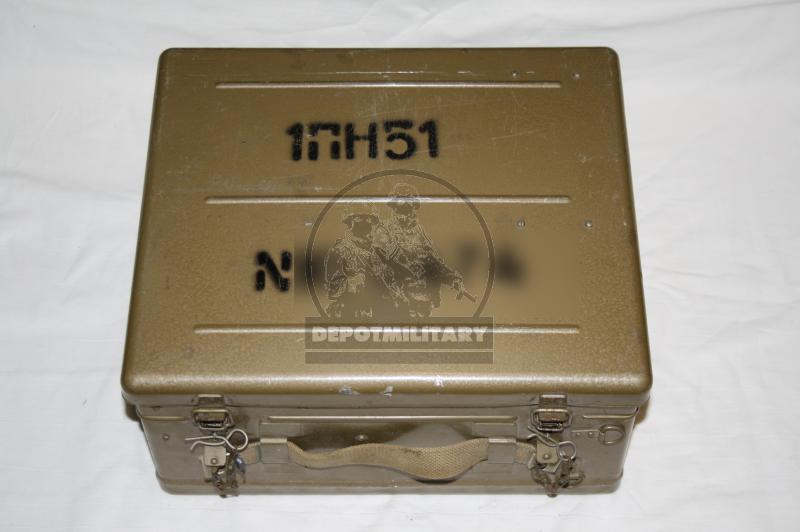

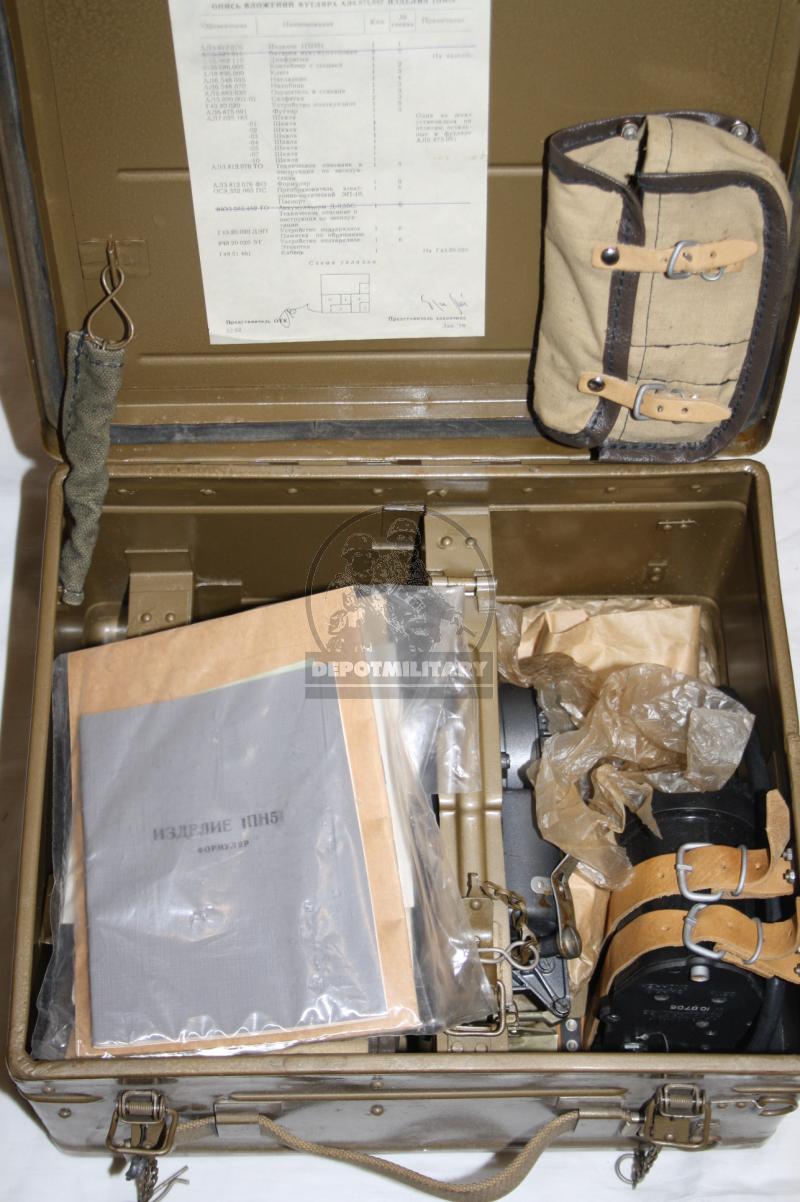

2. Box for transportation (the number of the scope matches the number printed on the box).
3. Charger (12V-27V) + cord
4. Napkin 2 pcs
5. Forehead for safe use with RPG-7 grenade launcher
6. Spare cartridge for drying in a glass.

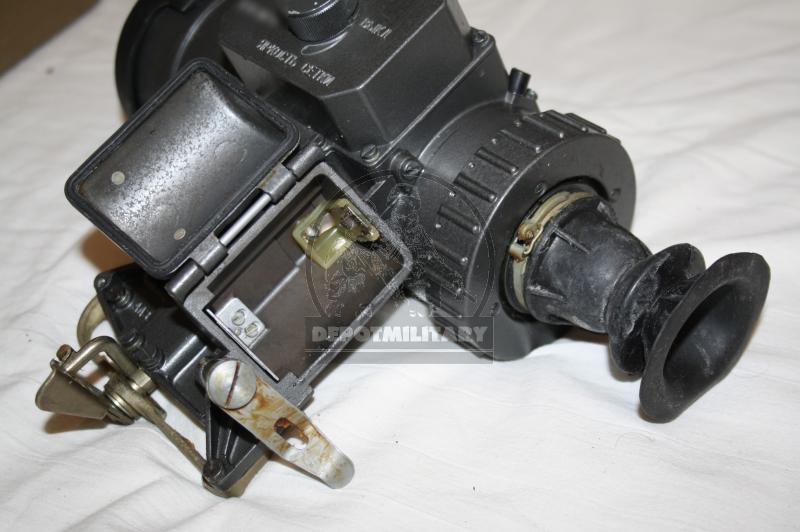

7. Eyecup ("Cat's Eye").

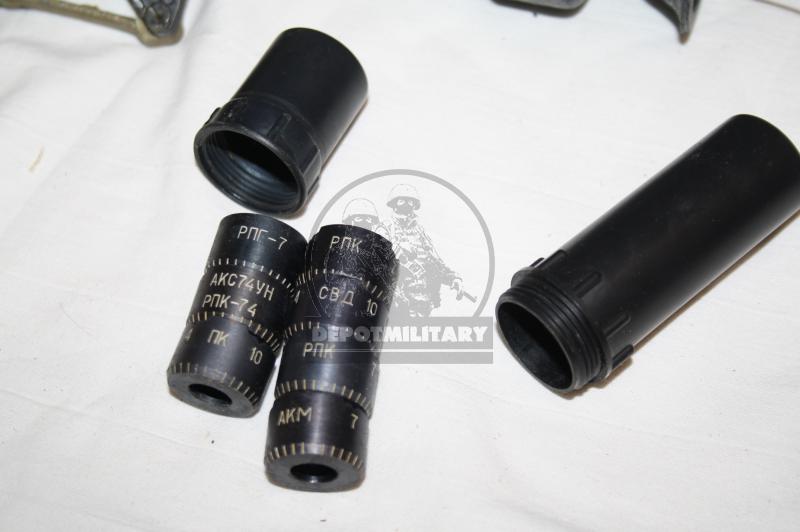

8. A set of aiming scales (limbs) for the following types of weapons (RPK, RPK-74, AK-74, RPG-7, AKM and SVD (VSS scale mounted on the scope).
9. Set of original documents, manuals and passport with 0 hours of service
10. Key for servicing scope
11. 2x AAA 4x batteries container (additional extra container)

Full set from the factory.

We are the only ones who have full permission to export this scopes from Russia.
Excluded locations: Middle East, Ukraine.

Attention, we are not responsible if the use of night vision sights by civilians is prohibited in some countries. Keep this in mind when ordering.

NSPU-3 (1PN51 "KAZUAR") unified night scope NSPU-3 for small arms and a hand anti-tank grenade launcher.

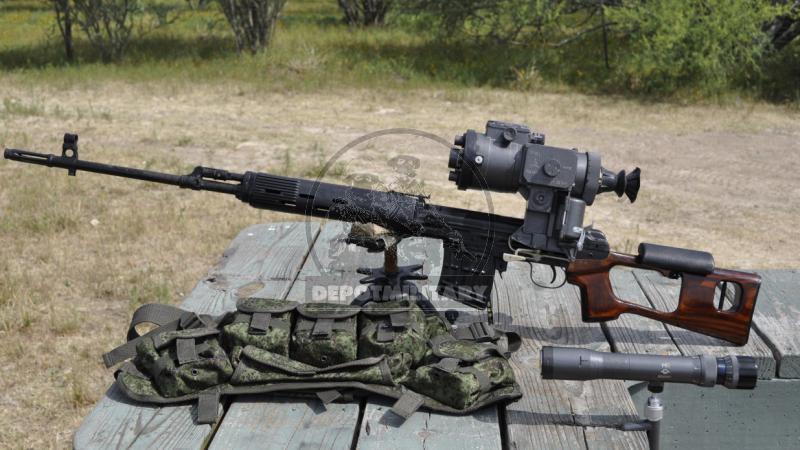

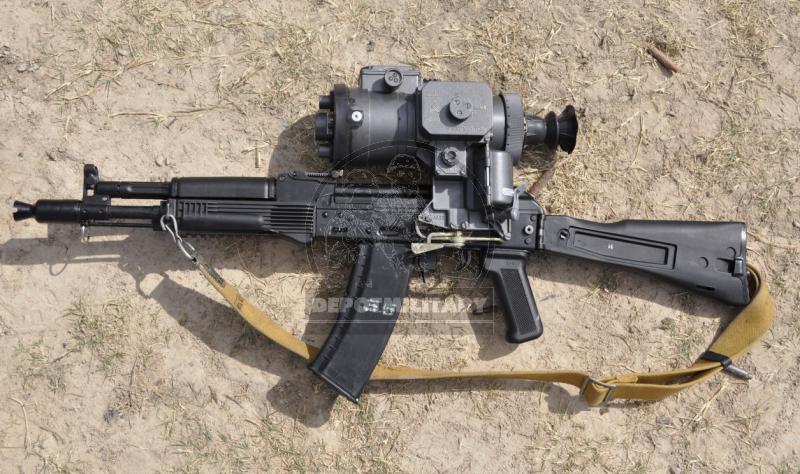

NSPU-3 is a second-generation electron-optical device of passive action on the second-generation image intensifier tube, designed to monitor and provide targeted shooting at night (in conditions of natural night illumination) from AKM / AKMN, AK74, AK74M, AK-101, AK-102, AK -103, AK-104, AK-105, AK-107, AK-108, RPK / RPKN, RPK74, PKM machine guns, SVD sniper rifle, RPG-7 hand-held anti-tank grenade launcher.

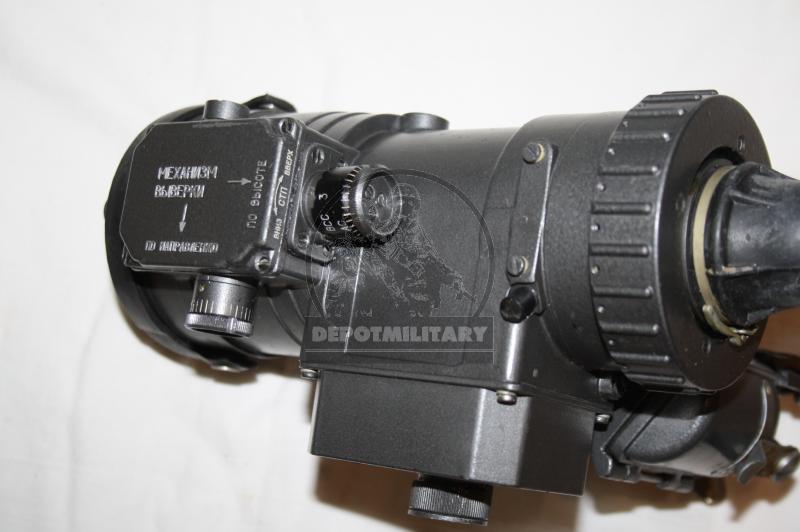

The scope is equipped with mechanisms for introducing aiming angles, alignment in height and direction, a mechanism for adjusting the brightness of the grid. Using the sight, you can determine the distance to the target, if its dimensions are known. It has high noise immunity in general and local illumination, provides significant brightness enhancement, as well as the ability to work without external illumination in low light conditions.

This scope was developed in the end of 80s. And took part in many operations of the USSR and Russia!
Including Afghanistan, the 1-2 Chechen campaign, many events in Russia, and even now in Syria!

Technical data of the NSPU-3 sight
Visible magnification, 3.46 times
Angular field in the space of objects 9 ° 35 'deg.
Removal of the exit pupil, mm 50
Aiming line alignment range:
height ± 0-08
in the direction of ± 0-08
Supply voltage, V 6.25
The maximum current consumed by the sight, mA 40
Weight of the scope kit in the stowed position, kg 2.1
The mass of the sight with a power source, kg 6.450
Sight length, mm 276
Sight height, mm 210
Sight Width, mm 140

The sight is operated at an ambient temperature of 50 to minus 50 ° C and a relative humidity of not more than 98% at a temperature of 40 ° C.
