1975 NSPU 1PN34 soviet night vision scope FULL SET IN BOX [RESERVE]
Price $2300 (item number: #924)
Price do not include shipping, shipping costs are calculated separately after placing an order, depending on the location and weight of the items.
Original russian NSPU (1PN34) night vision scope. Made in 1975. Factory maintenance №2 in 1985.
Such scopes were used by fighters of the soviet army, KGB, GRU of the USSR from the end of 1960 to 1990 in all wars and local conflicts for a given period (Afghanistan, Chechnya).
From warehouse storage. In factory lubricant and paper. Rubber parts in talcum powder.

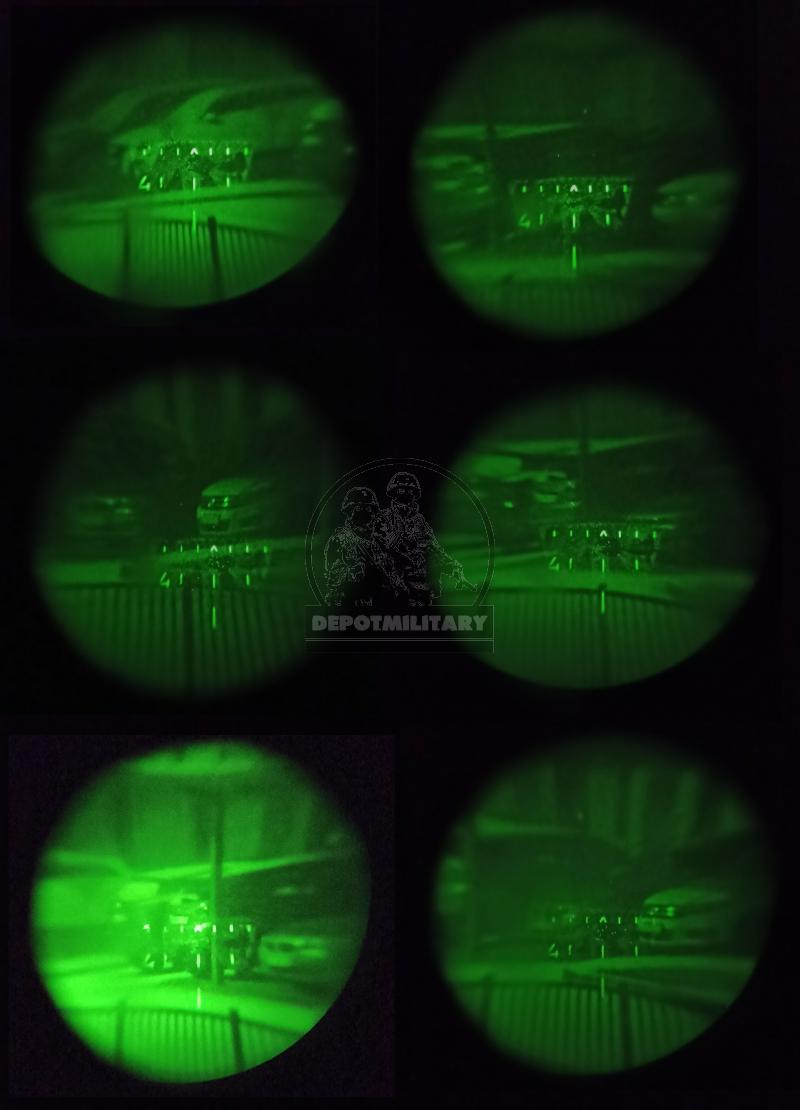

Checked working condition, see photo of image.
At maximum brightness of the reticle near the marks, highlights are visible that do not hide the image (see photo). At normal low to medium brightness, this trace is not visible.
Be careful with the original leather handle - from a large age, it may not support the weight of an entire box with a scope.

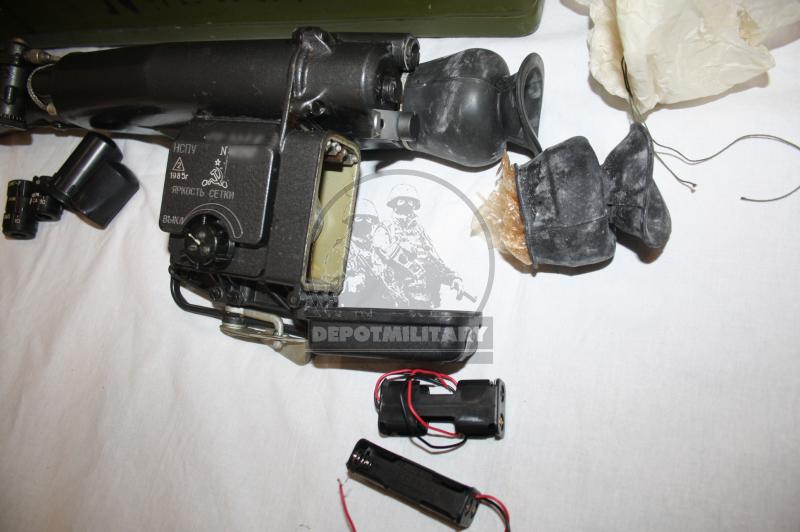

Also, as a gift, we give an adapter for 2 AA batteries for working the scope in a civilian version from regular AA batteries.

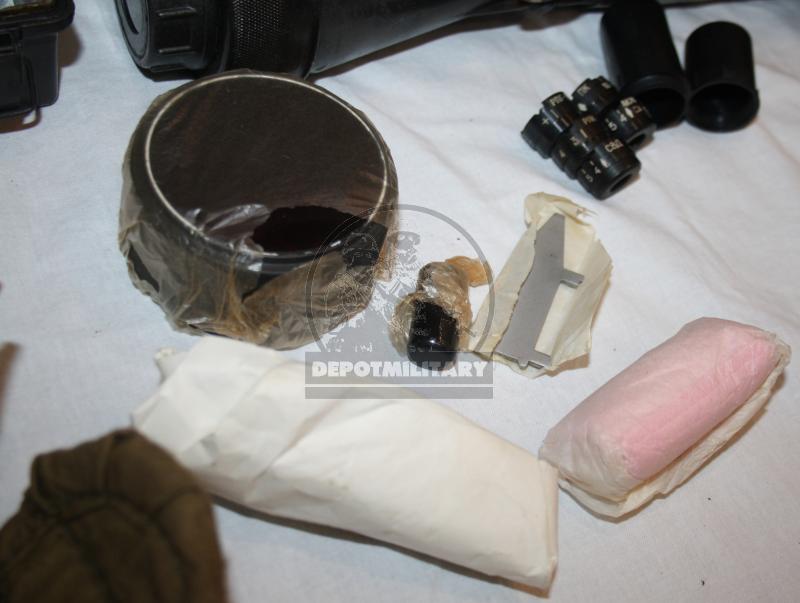

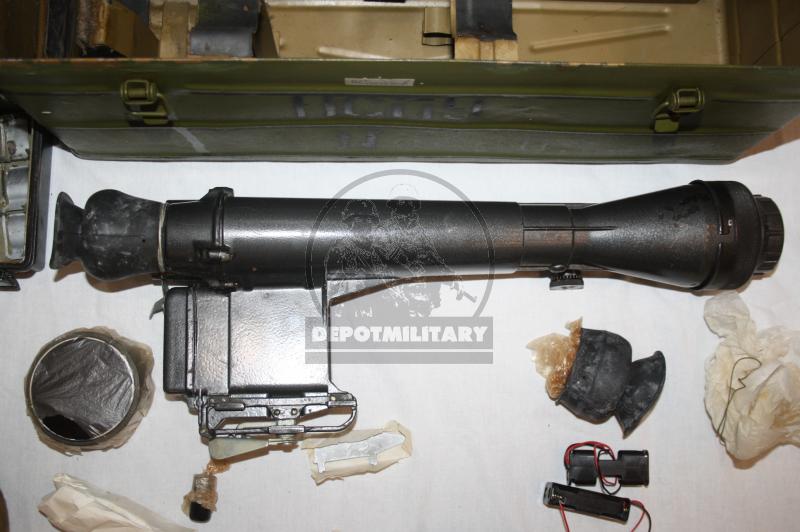

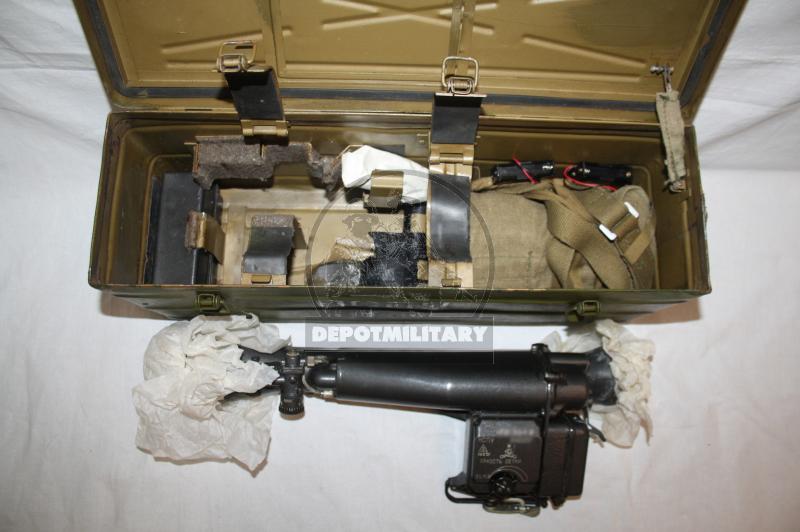

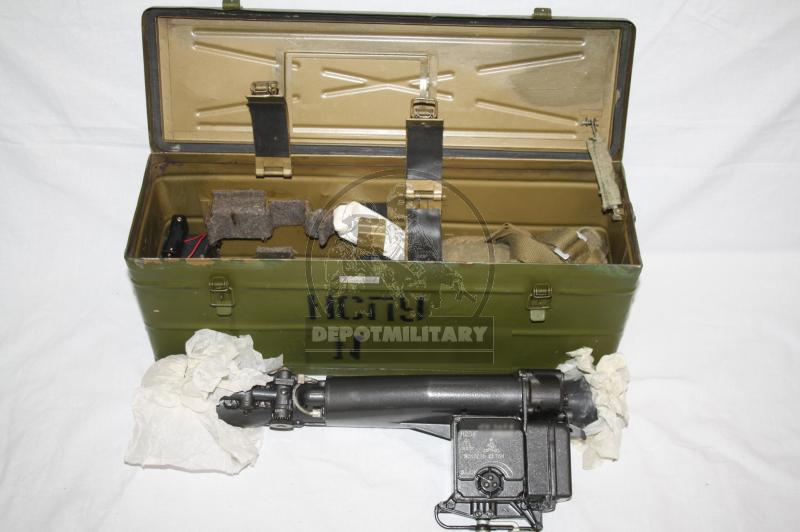

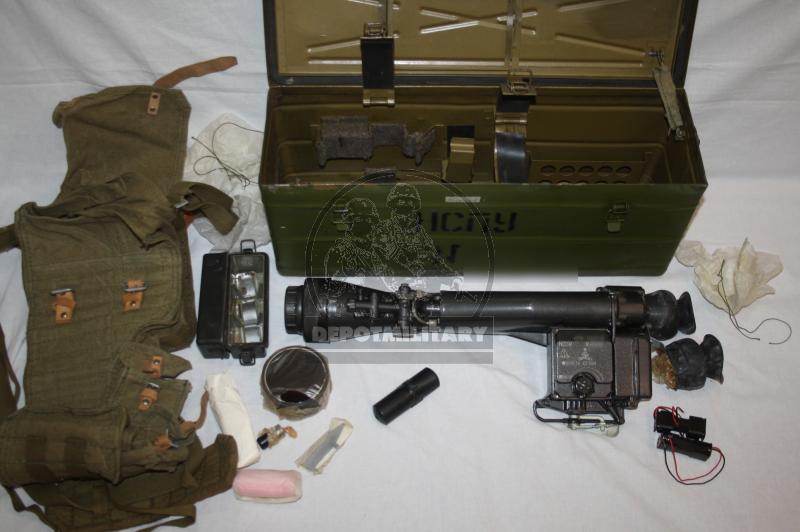

FULL FACTORY SET:

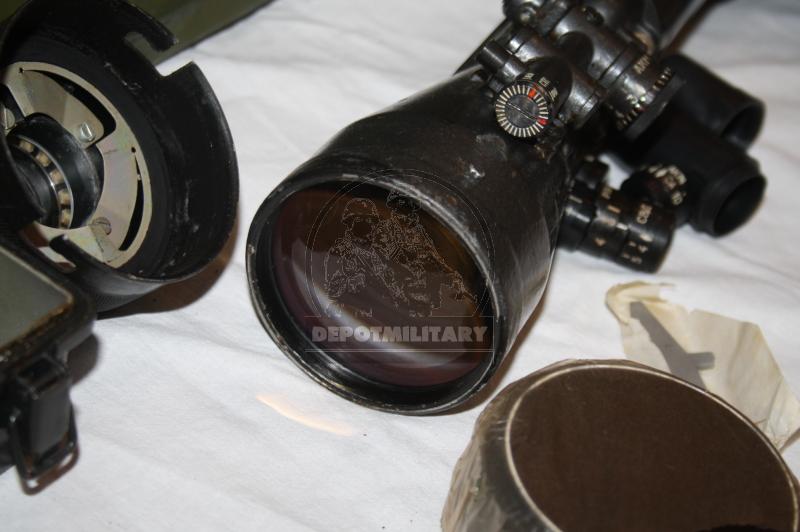

1. Scope NPSU 1PN34 with a nozzle on the lens ("diaphragm") for the possibility of using a night sight in daylight. + Eyecup

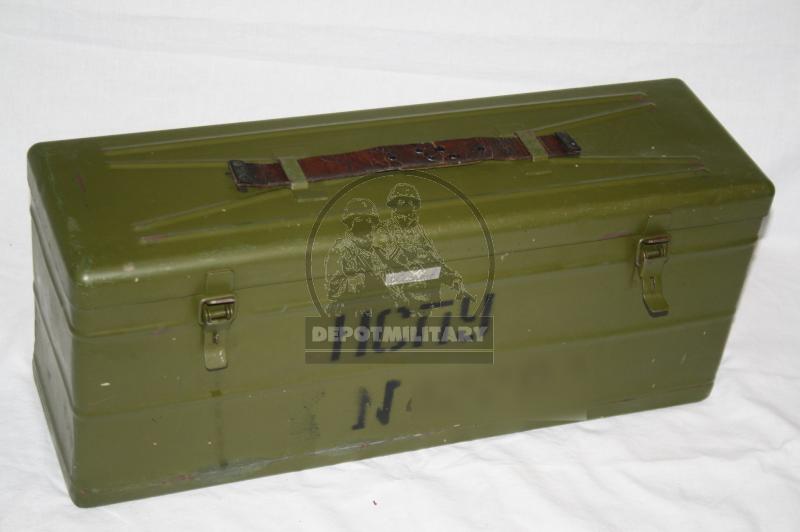

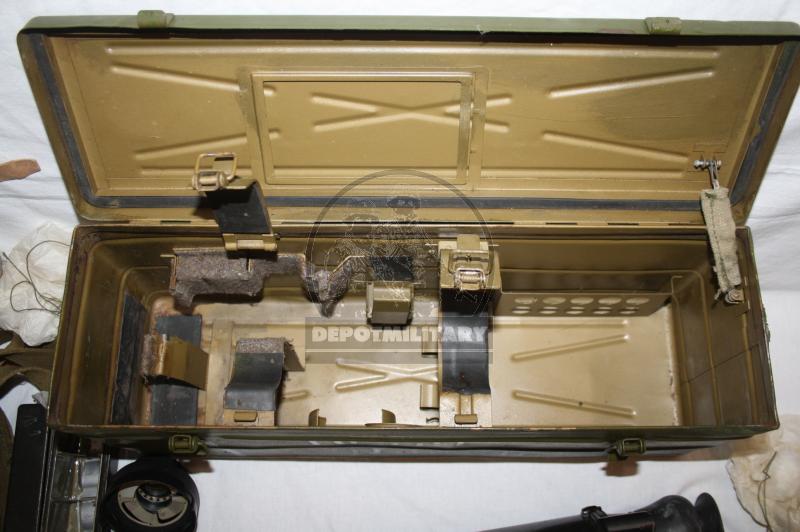

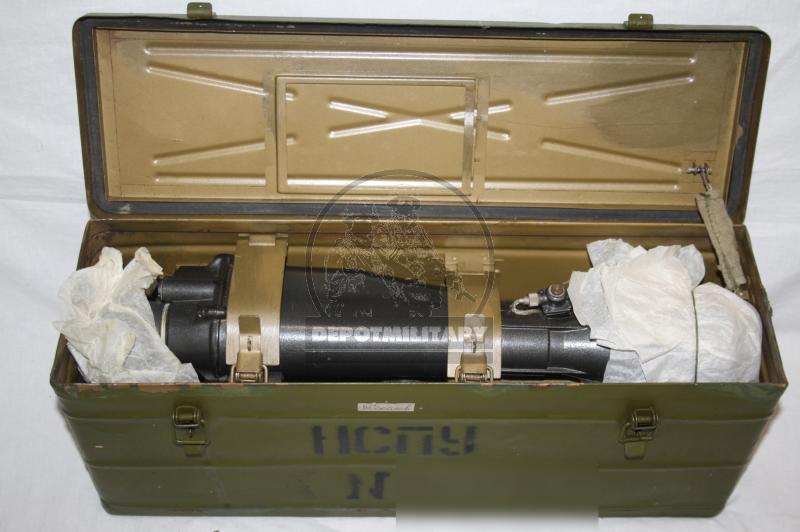

2. Box for transportation (the number of the scope matches the number printed on the box)
3. Carry bag
4. Belts for the paratrooper parachute suspension system (2 pieces).
5. Light filter
6. Spare cartridge for drying in a glass.
7. Eyecup ("Cat's Eye").

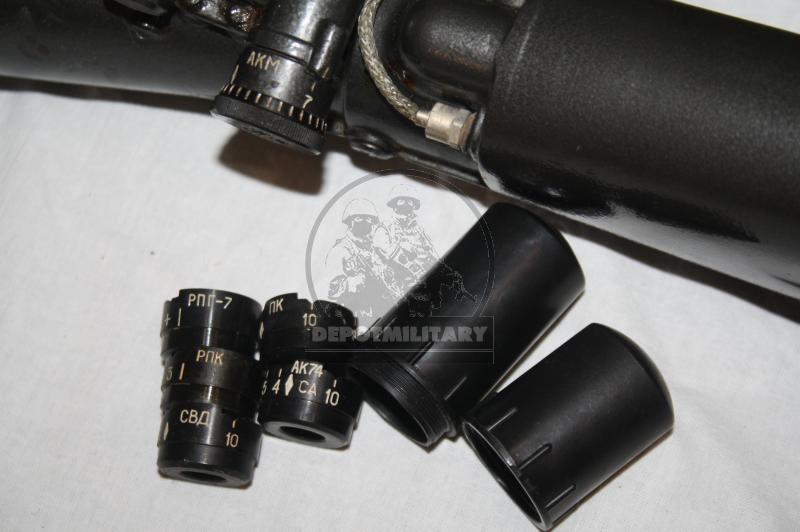

8. A set of aiming scales (limbs) for the following types of weapons (AK-74, RPK, PK, SVD, RPK-74, RPG-7 and AKM (mounted on the scope).
9. Key for servicing the scope.
10. Box for original batteries (because of the complex system of army charging, you can better use 2 regular AA batteries with added adapter).
11. Napkin
12. 2x AA battery adapter (one for using with batteries and one is additional spare adapter)
Full set from the factory.
We are the only ones who have full permission to export this scopes from Russia.
Excluded locations: Middle East, Ukraine.
Attention, we are not responsible if the use of night vision sights by civilians is prohibited in some countries. Keep this in mind when ordering.
This scope was developed in the mid 70s. And took part in many operations of the USSR and Russia!
Including Afghanistan, the 1-2 Chechen campaign, many events in Russia, and even now in Syria!
NSPU (1PN34) (Unified Night Scope), is a Soviet night optical sight designed for aimed shooting from:
- AK family guns (AKMN-1, AKMSN-1, AK74N, AKS74N),
- RPK family machine guns (RPKN-1, RPKSN-1 , RPK-74N, RPKS74N),
- PKM family machine guns (PKMN-1, PKMSN-1),
- SVDN-1 sniper rifles,
- RPG-7N1 hand-held anti-tank grenade launcher (RPG-7DN1)
The characteristics of the scope allow one to confidently recognize a person’s growth figure at night up to 400 meters and a tank board up to 600 meters.
The weight of the sight in the firing position - 2.2 kg
Overall dimensions of the sight - 495 ? 191 ? 96 mm
Sight increase, not less than - 3.5 times
Horizontal field of view - 5.0 degrees
Vertical field of view - 4.0 degrees
Pupil exit diameter - 5 mm
Exit pupil removal - 50 mm
Lens focal length - 78 mm
Resolution - 2 ug. min
Sight continuous operation with one battery - 6 hours
Battery voltage 2NKBN-1.5 - 2.5 Volts
The capacity of the battery 2NKBN-1.5 - 1.5 A / hour
Consumed working current - 0.27 A
